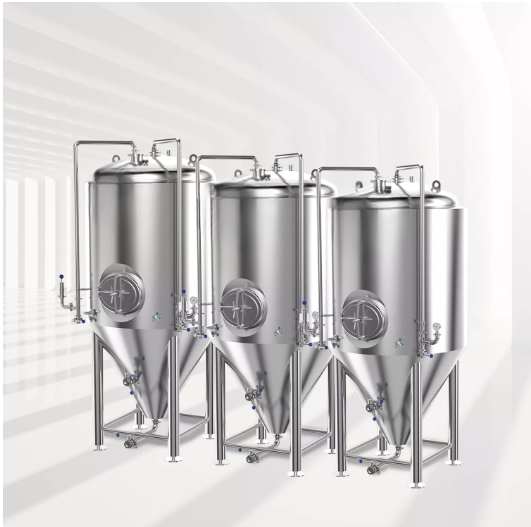

500L Fermentation Tank
Elevate Your Brewing Game with the 500L Fermentation Tank: Precision at Scale. Designed for meticulous temperature control and robust performance, this tank offers the ideal environment for microbial transformation. Make precision brewing a reality with this technical powerhouse at the core of your fermentation process.
Product Overview - 500L Fermenter
Vessel Configuration
- Effective volume = 500L, total volume = 625L --> extra 25% head space
- Net Dimension: 1060mm Dia x 2100mm H
- Oval head & 60°conical bottom
- Made from 304 Stainless steel, 100% TIG welded with 316 wire
- Inner layer=3mm, pickling and passivating treated
- Outer layer=2mm, Hairline polishing
- Cooling jacket: Dimpled plate on cone and side
- With glycol water inlet and glycol water outlet, tri-clamp type
- PU Insulation layer=80mm on side and cone bottom
- Design pressure 0.3MPa; Working pressure 0.15Mpa.
- 60°Conical Cone bottom
- 4 x heavy duty legs with leveling foot pads
Features include:

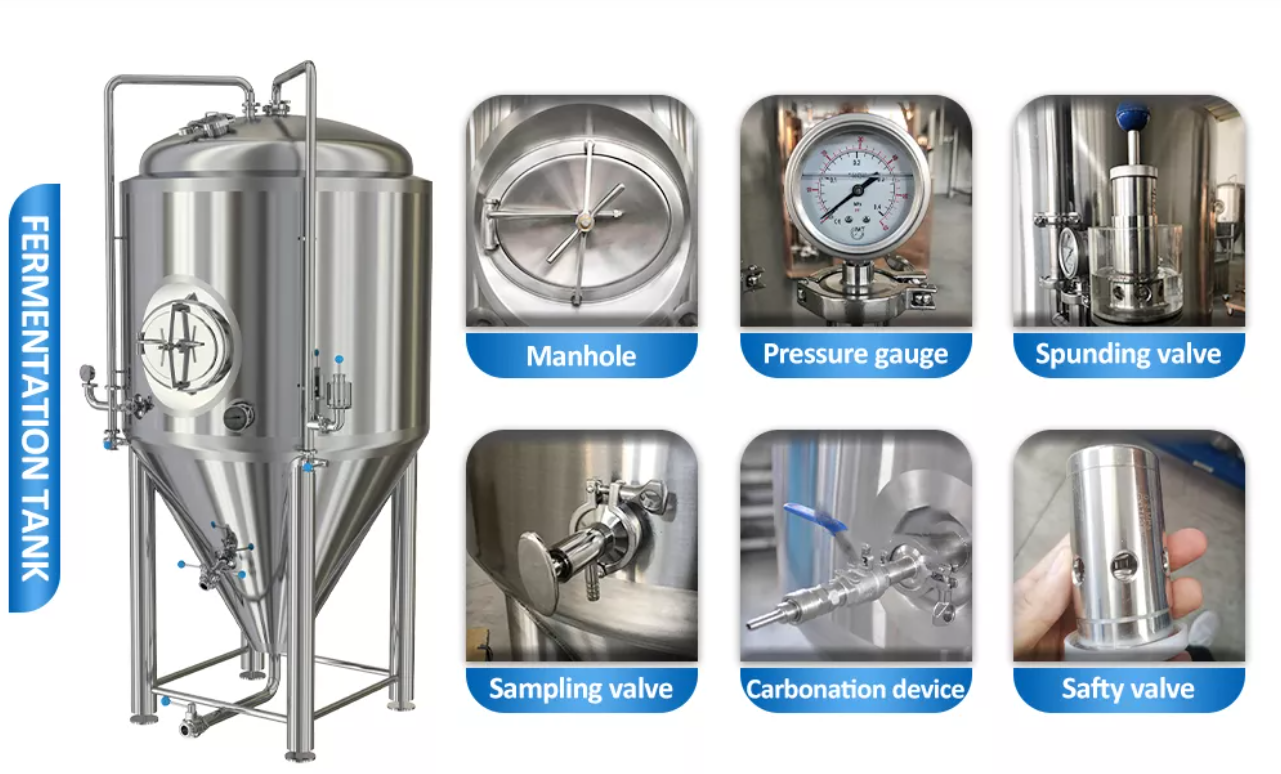

- Top Manway or Side Manway --> based on your preference
- CIP arm with internal 360°spray ball
- Pressure relief valve on CIP arm
- Shockproof pressure gauge on top manway
- Temperature Gauge
- Sample port with high grade sample valve
- Carbonation Port with carbonation stone
- Product outlet on cone
- Bottom drain port
- PT-100 Temperature probe
- Complete fittings, valves
Optional Add-on include:
- Spunding Valve
- Dry hopping port on vessel
- Dry hopping device – sight glass type
- Ultra high quality sample tap (spiral-type)
