Products   >>  Automatic Canning Machine

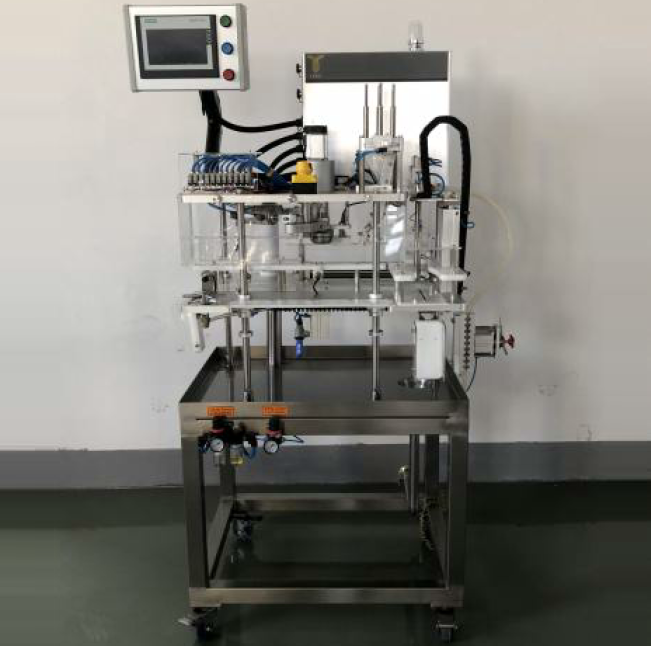

Automated canning machine with a touchscreen control panel and several tubes and valves.

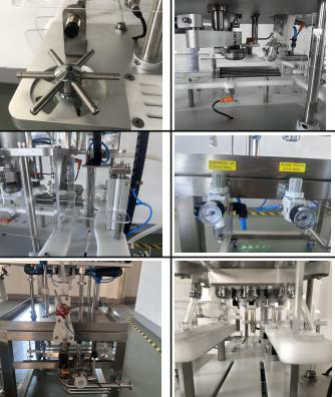

Close-up of a metallic, spoked wheel with a central knob, mounted on a device.
Close-up of mechanical components with silver and gold fittings in an industrial setting.

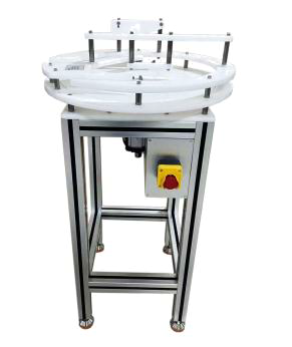

Rotary table stands with circular tops, designed for holding cans, on a workshop floor.

Automatic Canning Machine

The automatic canning system with feeding table is designed to adapt to various beverages and production environments. The intelligent infeed table synchronises with the filler and seamer, reducing jams and optimizing throughput.
Whether you're working with carbonated or non-carbonated beverages, our adjustable flow rate and carbonation-level control ensure superior packaging quality with minimal oxygen exposure.
The touch-screen interface lets you save product recipes, monitor can counts, and adjust fill levels on the fly - no need for external software.

Product Overview

High level summary:

  • Automatic infeed and alignment system for seamless can delivery
  • High-speed filling and seaming unit (up to 60 cans/min depending on size)
  • Compatible with 250ml, 330ml, 500ml, and 16oz cans
  • 304/316L stainless steel contact parts for food-grade operations
  • Adjustable settings for different beverage viscosities and carbonation levels
  • Compact footprint with ergonomic feeding table design
  • Integrated PLC control with touch-screen interface
  • Low oxygen pickup and high CO₂ retention
  • Optional nitrogen dosing, date coding & rinse station available
  • CE/ISO certified and export-ready

Standard specification:

  1. Capacity: 500PCS/STATION|1 STATION
  2. Power: Single Phase 110V-240VAC 50Hz (by default)
  3. Power consumption: 500W
  4. Main Material:  AISI304, Aluminum Alloy and POM
  5. Beer Source Requirements: Temperature: 30.2 - 32F (-1 to 0C), Carbonation: 2.4 to 2.7 volumes CO2 (4.6 to 5.2 g/L CO2), Pressure: 22psi (0.15MPa), Connection: 1.5" Tri-clamp
  6. CO2 Regulator: 58-65 psi (0.4MPa-0.45Mpa) from plant system connected to canning system with 3/8“OD barbed
  7. Air Regulator: 87-102 psi (0.6MPa-0.7Mpa) from plant system connected to canning system with 3/8“OD barbed fitting
  8. Time setting method: Siemens PLC 200 smart and IEV3 Touch Screen
  9. Seamer: Cemented Carbide, Panasonic Motor
  10. Dissolved Oxygen: ≤30ppb
  11. Can type: The machine can be configured for nearly all standard can sizes, e.g. 250ml, 330ml, 500ml, and 16oz sizes. Change over between different can dimensions is a snap, requiring only a few simple tools and less than 30 minutes.
  12. Rinse function: 3S/pc (not adjustable)
  13. Spray function: 2S/pc (adjustable
  14. Package: Composite board boxes

Functional Breakdown:

  1. Automated Infeed and Can Alignment - The feeding table handles bulk can delivery, aligns cans automatically, and feeds them into the filler without jamming or manual intervention.
  2. High-Precision Filling - Using pressure-sensitive valves and anti-foaming nozzles, the filler delivers exact quantities into each can, ensuring repeatability and quality across the batch.
  3. Hermetic Seaming - The rotary seaming unit provides secure, leak-proof sealing compatible with all standard aluminum lids. Seam integrity is tested and meets industry norms.
  4. Optional Add-ons:
    1. Nitrogen dosing system for extended shelf life
    2. Date coding printer for traceability
    3. Rinsing and air-drying module for cleanliness
    4. CIP (Clean-in-Place) ports for effortless internal cleaning
    5. CO₂ purging system to reduce oxygen in can headspace
