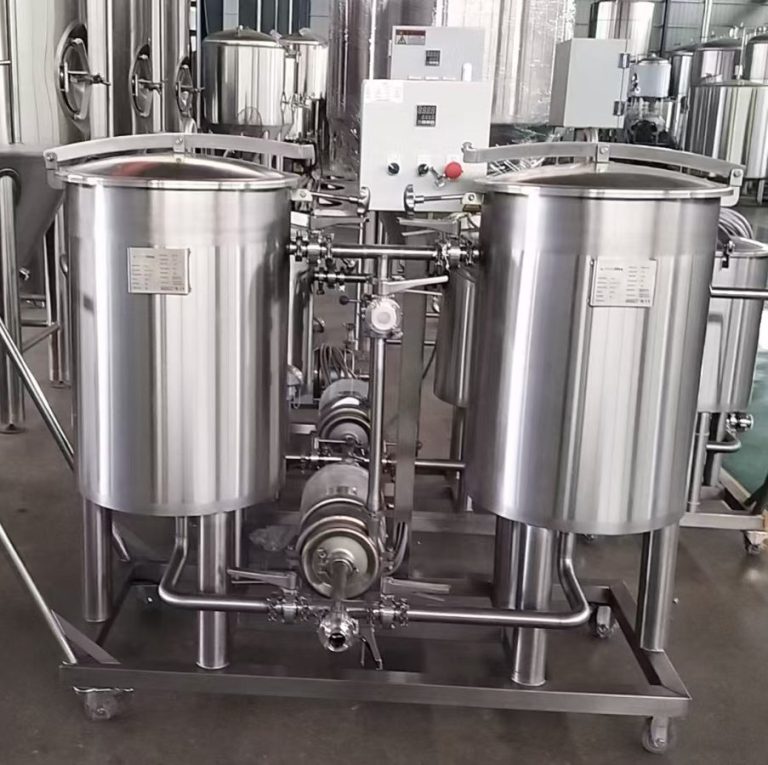

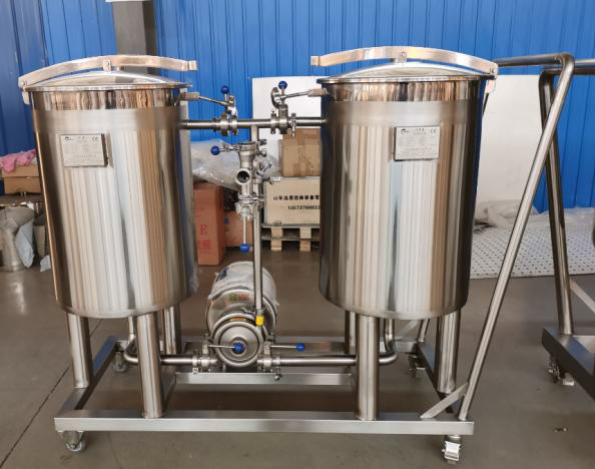

CIP System (Mobile Cart)
The CIP (Clean-in-Place) cleaning system is comprised of a caustic tank and steriliser tanks, which include inline valves. For smaller tank volumes, tanks can be mounted on trolleys, facilitating the cleaning of brewing systems. Alkaline cleaning effectively removes fats and proteins through the process of saponification, enhancing safety standards. After undergoing CIP treatment, surfaces are clean and free from water or residues, ensuring no dirt remains. The device is user-friendly and designed with robust safety features. Various sizes are available, and custom solutions can be tailored to meet specific customer requirements.
Product Overview
Standard specification:
1) Sterilizer tank
- Effective volume: 100L
- Inner Body Thickness: 2mm
- Inner & Outer Plate Surface protection, welding line
- Belt Sander Polished
- Material: Stainless steel 304, Brushed outer shell
- With valves and accessories
2) Alkali liquor tank
- Effective volume: 100L
- Inner Body Thickness: 2mm
- Electric heating, power: 4kW
- With level sensor to avoid dry burning
- Inner & Outer Plate Surface protection, welding line
- Belt Sander Polished
- Material: Stainless steel 304, Brushed outer shell
- With valves and accessories
3) Washing pump
- Rated flow 3m3/h, power: 1.1kW, head: 18m
- Centrifugal pump, motor brand: ABB or WEG, UKCA / CE certification
- Temperature resistance: 120℃
- Clamp connection
- Material: Sanitary SUS304

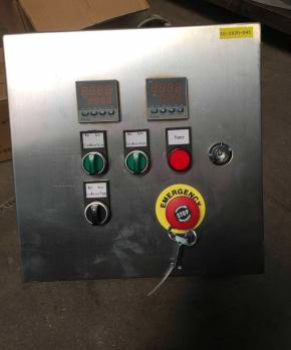

4) Control panel
- Material: painted steel
- Function: Temperature display and control for Alkali tank, Pump on/off control
