Products >> Malt Mill (Grain Mill)

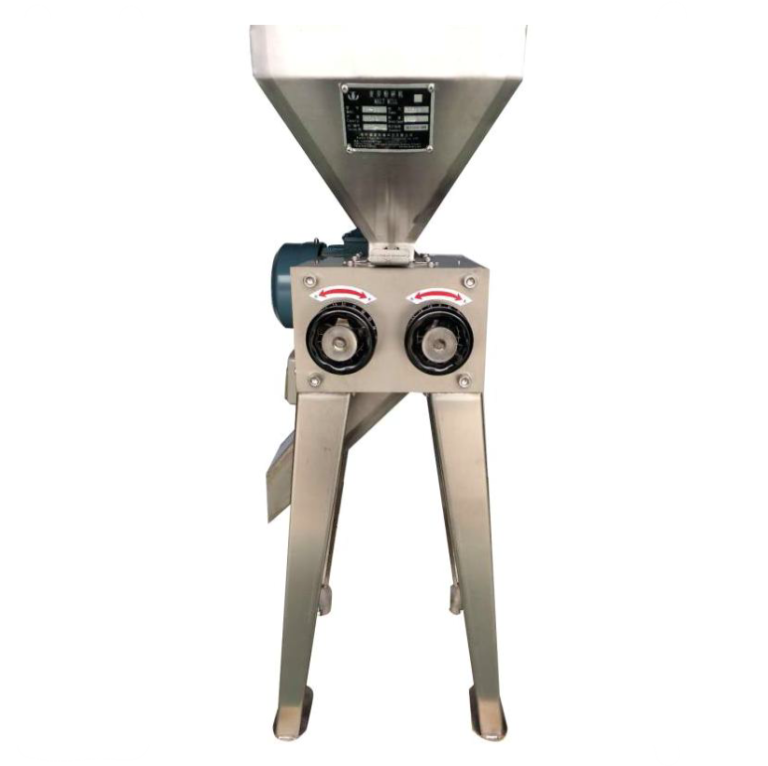

Stainless steel grain mill with control knobs and a funnel-shaped hopper.

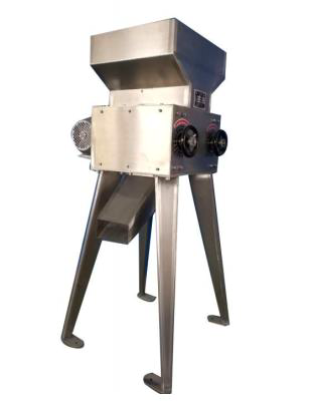

Industrial grain grinder with a hopper and motor, mounted on a wooden pallet.

Grain Mill with two black handles and a nameplate displaying data.

Industrial grinder with a metal body and a blue section, mounted on sturdy legs.

Malt Mill (Grain Mill)

The Malt Miller (also known as a grain mill, grist mill, brewer's mill, etc.) is an essential part of any brewery, and can be specified for a production capacity based on the brewery batch capacity.

The robust malt mill features a dual roller with differential speed and adjustment of particle size to allow for selecting the right degree of crush.

The Roller Material is a High Alloy, and the unit includes a motor, belt pulley, and drive belt. The material options are Carbon Steel or Stainless Steel.

REQUEST PRICING

Product Overview

Standard specification:

Function: Grain crushing
Type: Double roller
Drive Power: 0.55kW - 2.2kW (selected based on brewery size)
Motor speed: up to 1400RPM
Output: 50kg/h - 800kg/h (selected based on brewery size)
Speed differential double roller
Faster roller speed: up to 800RPM
Crushing Particle Size: Adjustable
Temperature of Rollers after Production:≤56℃
Material: Carbon steel or Stainless steel.

Example of various model dimensions:

50-100kg/h: 500mm L x 280mm W x 900mm H
800kg/h: 750mm L x 450mm W x 1400mm H
