Products >> Semi-automatic Keg Washer Filler

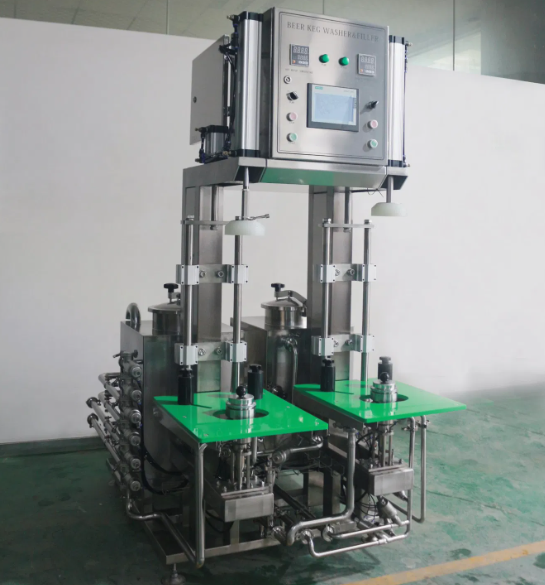

Semi-automatic PLC Operated Keg Washer & Filler
The semi-auto keg washer filler is operated via a PLC HMI control panel, and features two reservoirs (Caustic and hot water), lifting table boards and a pressure raising and maintaining system so facilitate both keg cleaning and fillings processes.
The keg washer can be specified for a single-phase (1ph, 230VAC, 50Hz) or three-phase (3-ph, 400VAC, 50Hz) power supply.
It also has a choice of heating - either via steam heating (3kW) or via electrical heating (18kW).
Product Overview
Keg table - Compatible with 10L-60L sizes of kegs
Capable for A Style, D Style, S Style, G Style Spear etc.
Technical Specification:
1) Equipment Outer Dimensions: 1040mm L x 1750mm W x 2100mm H
2) Power Supply Voltage: 400VAC, 50Hz (customisable)
3) Production Capacity: ≈ 30kegs/H
4) Applicable Kegs: SS Kegφ 250-500mm, Height 360-600mm
5) Tank Heating method: Steam Heating (power:3kW) or electrical heating (power:18kW)
6) Table Board: Fixed or Lifting
7) Reservoirs (two): Caustic tank & hot water
8) Filling method: Upright filling
Function and features:
1) Automatic control by PLC, all parameters can be adjusted through touch
screen.
2) Cleaning and filling process can be finished in this machine at one time.
3) With unique pressure maintaining system performance stable and reliable,
beer loss minimum.
4) With CIP automatic cleaning system
5) Table board is lifting, and convenient to take kegs, labour-saving and
time-saving.
