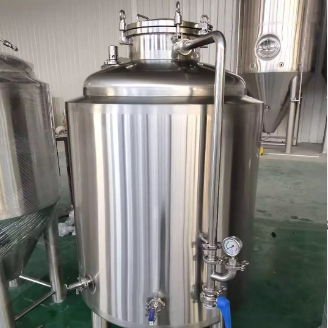

100L Brite Tank
Shine a Light on Quality: The 100L Brite Tank. Crafted for Precision Finishing. This technical masterpiece ensures crystal-clear beer with advanced temperature control and pressure management. Elevate your brew's brilliance with this essential component, designed for uncompromising quality in your brewing process.
Explore our range, also available in 1BBL, 200L, 2BBL, 300L, 3BBL, 400L, 4BBL, 500L and 5BBL sizes, to find the perfect solution for your brewing ambitions.
Product Overview - 100L Brite Tank
Vessel Configuration
- Effective volume = 100L, total volume = 125L --> extra 25% head space
- Net Dimension: 640mm Dia x 1100mm H
- Dished ends
- Made from 304 Stainless steel, 100% TIG welded with 316 wire
- Inner layer=3mm, pickling and passivating treated
- Outer layer=2mm, Hairline polishing
- Cooling jacket: Dimpled plate on cone and side
- PU Insulation layer=80mm on side and cone bottom
- Design pressure 0.3MPa; Working pressure 0.15Mpa.
- 4 x heavy duty legs with leveling foot pads
Features include:

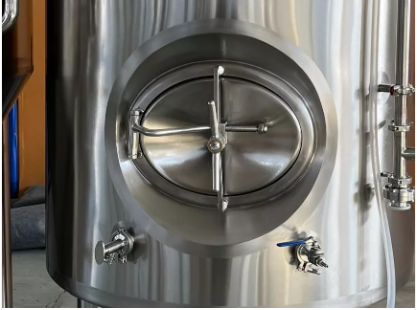

- Top Manway, flange type
- CIP arm with internal 360°spray ball
- Pressure relief valve on top of tank

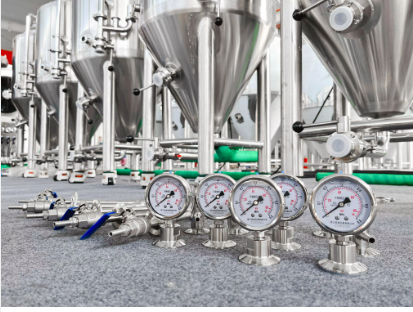

- Pressure gauge on CIP arm
- Sample port with high grade sample valve
- Carbonation port with carbonation stone
- Bottom outlet port
- PT-100 Temperature probe
- Complete fittings, valves
Optional Add-ons include:
- Ultra high quality sample tap (spiral-type)
- Upstand to avoid drawing off sediment from bottom of tank.
- Spunding valve

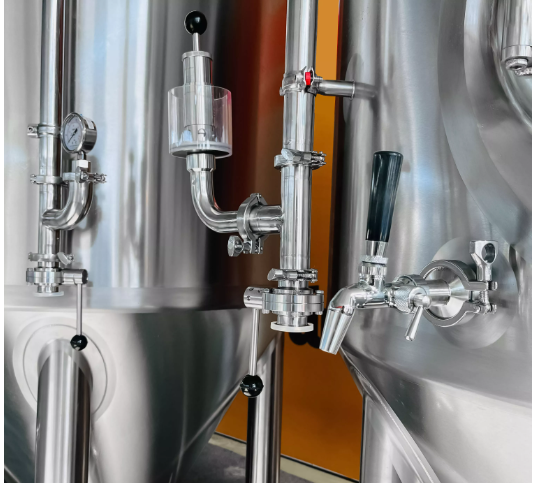

Spunding Valves
Spunding valves assemblies available for all BBTs.
Connects onto the CIP arm.
Essential for secondary fermentation ensuring consistent pressure.
Once you go pressure fermenting, you'll never go back!

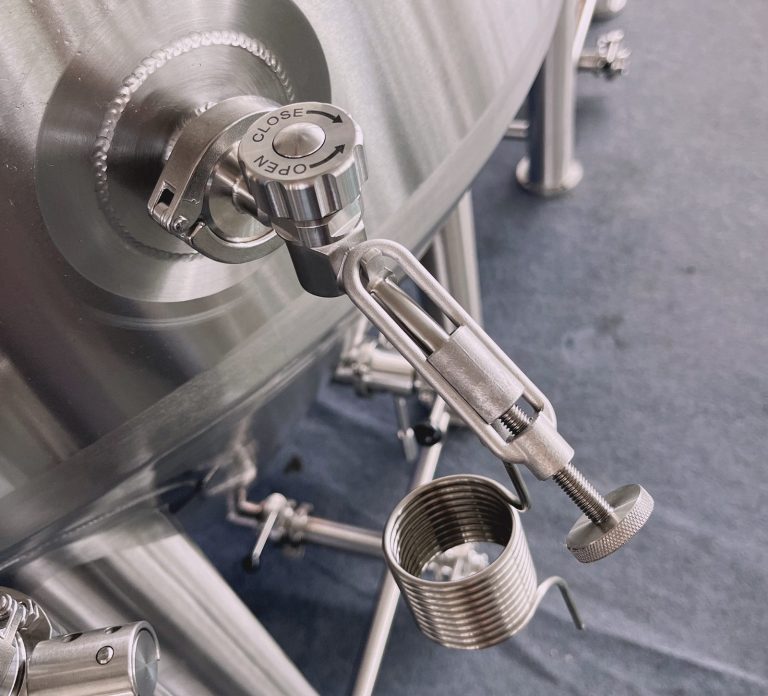

Sample Taps with Anti-foam Spiral Coil
Ensure that your samples can be drawing quickily with limited foaming by reducing the pressure drop across between the tank internals and your glass.
As sure-fire way to ensure consistent samples without excessive foaming.
