Products >> 1BBL SMART Brewhouse
1BBL SMART Brewhouse
Master Your Craft with our 1BBL 3-Vessel Brewhouse: Designed for artisanal brewers, this advanced system boasts separate vessels for mashing, boiling, and fermenting, providing meticulous control over every aspect of your brew. Harness the precision of an industrial-grade setup and elevate your brewing journey to new heights of excellence.
Our 1BBL brewing system is meticulously tailored for homebrew enthusiasts, aspiring microbreweries, pilot brewing experimentation, and even full-scale nanobrewery production.
Explore our range, also available in 2BBL, 3BBL, 4BBL, and 5BBL sizes, to find the perfect solution for your brewing ambitions.
Product Specification - 1BBL SMART 3-Vessel Brewhouse
Standard System Configuration
- Skid Dimensions: 2640mm L x 1120mm W x 1750mm H
- Approximate Weight: 600kg
(i) Mash / Lauter Tank
- Effective volume = 1BBL, total volume = 177L --> extra 25% head space
- Atmospheric manual open top lid
- Tri-clamp Sparge Ring Tube
- Wort backflow pipeline equip with Sight glass
- Removable false bottom
- Grain out door & Grain Chute & Manual rake
- Temperature Probe & PT-100
- 1T/H Wort pump, VFD control by PID control panel
- Level markings inside of tank
(ii) Boil Kettle / Whirlpool Tank
- Effective volume = 1BBL, total volume = 204L --> extra 25% head space
- Atmospheric manual open top lid
- 7kW electric heating element
- Tangent whirlpool inlet
- Fabricated baffle near the whirlpool outlet
- Whirlpool outlet penetration positioned outwardly from bottom drain port
- Tri-clamp to connect with valves
- Temperature Probe & PT-100
- Pipework shares the same pump with the mash/lauter tank
- Outdoor steam exhaust pipe as standard
- Level markings inside of tank
(iii) Hot Water Tank
- Effective volume = 2BBL, total volume = 275L --> extra 25% head space
- Atmospheric manual open top lid
- 12kW electric heating element
- 1T/H Hot water pump
- Temperature Probe & PT-100
- Level markings inside of tank
(iv) Knocking Out Fittings
- High precision hops filter, fitted in pipework upstream of PHE
- 1m² single stage plate heat exchanger (PHE)
- Temperature Gauge after PHE
- Potable water outlet pipe from the PHE to Hot water tank
- Sight glass fitted on pipework after PHE
- Oxygenation device upstream of wort knocking out port
- Butterfly valve equipped on the end of the pipework, for clamp hose connection
(v) PID Control System
- SS 304 Material control panel enclosure
- Electrical supply: 3-ph 400VAC 50Hz
- Temperature indicator & heating elements on/off control of mash/lauter tun, kettle/whirlpool tank, hot water tank
- Wort Pump VFD Speed control
- Hot water pump on/off control
- UKCA and CE Certified.
Skid and Tank Specification:
- 2-layer with insulation: Inner-jacket (SS304) thickness: 3mm, pickling and passivating treated;
- External-Jacket (SS304) thickness: 2mm, ink wires drawing plate;
- Atmosphere manual open top lid, thickness: 3mm
- Tank Insulation layer: PU-thickness: 30mm.
- 100% high precision TIG welded joints
- Robust universal wheels (with shaft)
Optional Add-on include:
- 4kW RIMS heating element manifold external to mash tank
- Anti dry-run level sensors for heating elements
- Indoor water-fed steam condenser and fittings
Product Overview
1BBL SMART Brewing Equipment Brewing system is specially customised for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.
• Smart
Mini scale industrial brewing equipment, with all the scaled down parts fittings, you will full in love with this optimised Brew center.
• Turnkey Solution
Installed & wired ready on a fully welded frame platform - nothing can be easier for your pilot brewing jobs.
• 100% Flexible Design
Atmospheric top lid enable a direct inspection & clean of inner space.
You will be able to pilot brewing with your professional brewing recipe on this unit, nothing can be easier with such a complete system configuration, pipelines, wort pump & hot water pump, heat exchanger, etc.
Semi-automatic Control System
Never give up your creative recipe with such a smart control system, temperature control, pump VFD speed control, international standard electric components take your brewing into the next level.
• Optional system volume from 1BBL to 5BBL.
• You only need 2 square metres of floor space to start your own brewery
• All material & accessories included, enjoy your high-quality mechanical operation
• Optional System power supply 230V/400V

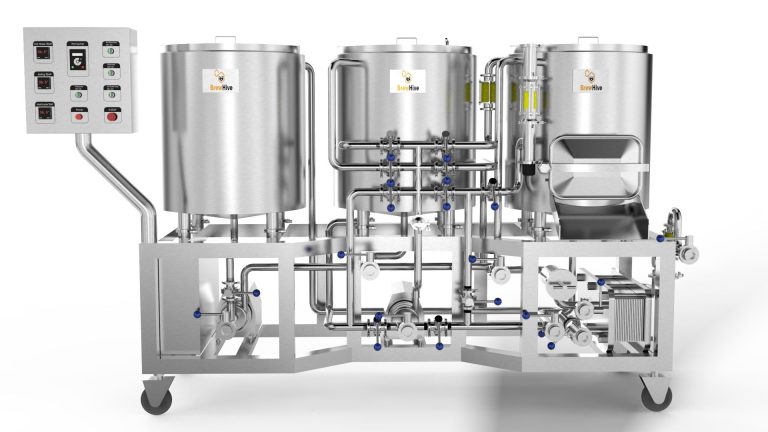

Left: Hot Water Tank
Middle: Kettle / Whirlpool Tank
Right: Mash / Lauter Tank
Heating Method: Electric heating elements
Control System: PID Control
Application: Lager, Ale, IPA, Ginger beer, and a whole lot more!
Inner-Jacket (SUS304), TH=3.0mm, pickling& passivating treated;
External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate; Atmosphere pressure lid, TH=3.0mm;
Tanks’ Insulation layer: PU-thickness= 50mm;
100% high precision TIG welded joints;
Strong universal wheels (with shaft);
Installation Method: Assembled ready to use, Removable
