Milling System

(i) Malt Miller

• Function: Grain crushing
• Type: Double roller
• Drive Power:1.1kw
• Output: 300kg/hr
• Speed differential double roller
• Crushing Particle Size: Adjustable
• Temperature of Rollers after Production: ≤56°C
• Material: carbon steel

(ii) Conveyor auger

• Working capacity:500~800kg/h
• Lenght:3M
• Power:1.1KW
• Pipe diamter:φ114
• Material:SUS304

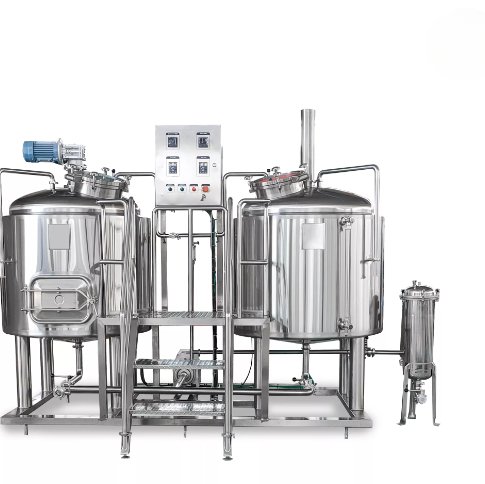

Brewhouse System

(iii) Mash / Lauter Tank

• Effective Capacity: 500L; Total Capacity:810L
• Dimension:φ1210*2030mm
• Insulation: Rock wool
• Insulation thickness: 80mm
• Interior SUS 304 thickness: 3mm
• Exterior SUS 304 thickness: 2.5mm
• Heating method: steam heating, heating area:1M2
• Grain rake with controlled motor on top, motor brand: ABB
• Removable tillage legs
• Size grain outlet with sight glass
• Conical top and conical bottom
• Top Glass Manhole
• 24V LED lamp
• Two CIP 360°rotary spray balls
• Easy clean and sparge nozzles
• Temperature sensor PT100(brand: JUMO)
• False bottom: Milling sieve plate detachable, thickness 4mm, Plate gap 0.7mm
• Material: SUS304, outer shell. Interior Finish: Overall polishing ≤0.6μm,Completely acid washing and passivation without dead
  corner. Form a protection film inside tank.
• Plate Surface protection, ribbon polished on welds.
• 100% TIG welding with pure argon gas shield
• 4pcs completely SUS304 heavy duty legs with leveling pad.

(iv) Boil Kettle / Whirlpool Tank

• Effective Capacity: 500L; Total Capacity:830L
• Dimension:φ1210*2040mm
• Insulation: Rock wool
• Insulation thickness: 80mm
• Interior SUS 304 thickness: 3mm
• Exterior SUS 304 thickness: 2.5mm
• Heating way: two parts steam heating, heating area:1.5M2
• Indoor exhaust pipe with tube heat exchanger inside
• Conical top and conical bottom
• Top Glass Manhole
• 24V LED lamp
• One CIP 360°rotary spray balls
• Side tangential port
• Trub dam
• Temperature sensor PT100(brand: JUMO)
• Level sensors and low level switch(brand: IFM)
• False bottom: Milling sieve plate detachable, thickness 4mm, Plate gap 0.7mm
• Material: SUS304, outer shell. Interior Finish: Overall polishing ≤0.6μm, Completely acid washing and passivation without dead corner. Form a protection film inside tank.
• Plate Surface protection, ribbon polished on welds.
• 100% TIG welding with pure argon gas shield
• 4pcs completely SUS304 heavy duty legs with leveling pad.

(v) Wort Pump

• Flux 3m3/h,lift:18M, power:1.1KW
• Centrifugal pump, Danfoss VFD, motor brand: ABB or WEG
• Temperature resistance:120°C
• Clamp connection
• Material:SanitarySUS304

(vi) Plate Heat Exchanger

• Effective cooling area:5m2
• Type: two stage
• Wort inlet/outlet
• City water inlet/outlet
• Glycol water inlet/outlet
• Material: Stainless steel 304
• Design/test pressure:10bar/13bar

(vii) Hop Filter

• Function: hops filter before cooling
• Working capacity:2L
• Type: pressured seal
• Material: Stainless steel 304
• With pressure gauge and port
• Wort inlet/outlet
• Filter Precision:60mesh

(viii) Wort Aeration System

• Function: Inline O2 blending with wort
• Full stainless steel pipe
• Aeration port with ball valve
• Aeration stone for equal air dispensing
• Sight glass with metal cover for wort observation
• Assorted valves and fittings

(ix) Work Grant Tank (Underback)

• Function: Avoiding negative pressure under false bottom
• Manual flow balance control
• Capacity:10L
• Material: Glass
• Assorted rotary CIP ball for cleaning

(x) Pipeline of Mash Combination

• Material: stainless steel 304
• Sanitary valves and piping (pipe manifold)
• Matt brushed board for steam pipeline
• All pipelines are well connected before shipping
• Inlet/outlet for all brewhouse tanks and to fermenters
• All steam pipelines are connected by flanges, electric steam angle seat valves
• Steam trap stainless steel material with bypass
• With hot and cold water mixing valve (manual diaphragm valve)
• Connection method: German standard round thread
• Complete valves, fittings and all parts
• Every weld to a smooth sanitary finish

(xi) Flow Meter

• Brand: IFM
• One for feeding and sparge water
• One for hot wort

(xii) Work Platform

• Material: stainless steel
• Work platform to fit Matched with the equipment,
• Brushed surface, Floor with holes Including leveling feet.
• With Rail/Brace on both sides of the platform and the ladder
• Brewhouse system are mounted on the frame, easy to move

(xiii) Hot Water Tank

• Effective Capacity: 1000L,total capacity:1123L
• Boundary dimension: OD1210×H1956mm
• Insulation: rock wool, Insulation thickness: 80mm
• Interior SUS 304 thickness: 3mm;
  Exterior SUS 304 thickness: 2mm
• Heating: steam
• Tank Working Pressure: Atmosphere
• 360°coverage CIP spraying ball
• Stainless steel pipeline connect with brewhouse
• Conical top and conical bottom
• Stainless mounted manhole
• PU liquor level meter
• Temperature sensor PT100
• Material: SUS304 outer shell. Interior Finish: Overall polishing ≤0.6μm, Completely acid washing and passivation without dead corner. Form a protection film inside tank.
• 100% TIG welding with pure argon gas shield
• 4pcs completely SUS304 heavy duty legs with leveling pad
• With all matched valves and accessories.

(xiii) HLT Pump

• Flux 3m3/h,lift:18M,power:1.1KW
• Centrifugal pump, motor brand: ABB or WEG
• Temperature resistance:120°C
• Clamp connection
• Material:SanitarySUS304

(xiv) Steam Generator

• Electric steam generator
• 50kg/h,power:36kW
• Working voltage: three phase five wire
• Electricity: Customized
• With water softener
• CE certificated supplier

Fermentation System

(xv) Fermentation Tank

• Effective capacity: 500L,total capacity:676L
• Boundary dimension:φ1010×H2120mm
• Dimple plate cooling jacket on tank body and conical bottom
• Insulation: polyurethane, thickness: 80mm
• Interior thickness: 3mm
• Exterior thickness: 2mm
• Dished head and taper angle 60°
• Temperature sensor pt100
• Top manway
• Inner tank mechanical polishing and out plate surface protection ribbon polished on welds
• 1pcs x Hops adding port
• 1pcs x breathing valve
• 1pcs x water sealed spunding valve
• 1pcs x sample valve
• 1pcs x racking arm
• 1pcs x pressure gauge
• 1pcs x CIP 360°spray device
• 1pcs x drain outlet bottom
• 4 heavy duty legs with leveling pad
• Max working pressure: 2bar
• Material: SUS304 outer shell. Interior Finish: Overall polishing ≤0.6μm,Completely acid washing and passivation without dead corner. Form a protection film inside tank.

(xvi) Brite Beer Tank (BBT)

• Effective capacity: 500L,total capacity:611L
• Boundary dimension:φ1010×H1670mm
• Dimple plate cooling jacket on tank body and conical bottom
• Insulation: polyurethane, thickness: 80m
• Interior thickness: 3mm
• Exterior thickness: 2mm
• Dished head and conical bottom
• Thermowell with temperature sensor pt100
• Top manway
• 1pcs x CO2 port with carbonation stone
• 1pcs x breathing valve
• 1pcs x sample valve
• 1pcs x level tube
• 1pcs x spunding valve
• 1pcs x pressure gauge
• 1pcs x CIP 360°spray device with arm
• 1pcs x beer outlet bottom
• Working pressure:3bars
• 4 heavy duty legs with leveling pad
• Material: SUS304 outer shell. Interior Finish: Overall polishing ≤0.6μm,Completely acid washing and passivation without dead corner. Form a protection film inside tank.

(xvii) Sanitary Hose

• Ф32 internal diameter, L=5m/pcs
• Material: Food grade rubber, tri-clamp
• Including 2 connections/pc

Cooling System

(xviii) Glycol Chiller

• Cooling Capacity:5HP
• Refrigerant: Freon R407C, environmentally friendly (Other Freon for special request)
• Programmed 5'' LCD control panel with water proof cover
• Automatic temperature controller
• Scroll Compressor [Key Part] by Copeland, Emmerson, Danfoss, Sanyo etc.
• [Key part] expansion valve, DANFOS
• V-shape top mounted condenser [Key part] with corrosion resistant inner fin copper tube
• Evaporator[Key part]: 304SS shell and corrosion resistant inner copper tube low risk of leakage
• Corrosion resistant pump for glycol water recycle
• Efficient and low noise fans top amounted
• High and low pressure gauge for fryon monitoring
• High pressure and low pressure alarm
• Over temp alarm
• Over load alarm
• Intelligent anti-freezing protection
• Water flow alarm
• Pressure alarm
• Timer setup for start/stop
• Complete pipes and fitting assembled well
• Normal conditions: Chilled water inlet temp is 0°C, outlet temp is -5°C,ambient temp is 35°C

(xix) Glycol Water Tank

• Effective Capacity: 1500L, total capacity:1638L
• Boundary dimension:φ1310×H2197
• Boundary dimension: depending to final drawing
• Insulation: polyurethane
• Insulation thickness: 80mm
• Interior SUS 304 thickness: 3mm
• Exterior SUS 304 thickness: 2mm
• Cooling method: by glycol chiller
• Cooling Jacket: No
• Tank leakage test by full water for 72 hours
• Tank Working Pressure: Atmosphere
• Conical top and conical bottom
• Stainless mounted manhole
• PU liquor level meter
• Temperature sensor PT100
• Material: SUS304 outer shell. Interior Finish: Overall polishing ≤0.6μm, Completely acid washing and passivation without dead corner. Form a protection film inside tank.
• 100% TIG welding with pure argon gas shield
• 4pcs completely SUS304 heavy duty legs with leveling pad
• With all matched valves and accessories.

(xx) Glycol Water Pump

• Flux:3m3/h,power:1.1KW,lift:18M
• Centrifugal pump, motor brand: ABB or WEG
• Temperature resistance:120°C
• Clamp connection
• Material:SanitarySUS304

(xxi) Cold media Pipeline and Insulation Pipeline

• Dimensions:Ø38 / Ø32 / Ø25(depends on final drawing)
• Material: PPR
• Insulation: Polyethylene
• Length: according to general arrangement drawing + 25% of PPR
  tubes as spare parts
• Accessories: Solenoid valve 24 VDC (connect to CCT inlet), PPR 90° bend, PPR tee, PPR reduction, PPR butterfly valve (connect to CCT outlet) + 25% of PPR components (bend/tee/reduction) as spare parts

CIP System

(xxii) Sterilisation Tank

• Effective volume:50L
• Inner Body Thickness:2mm
• Inner & Outer Plate Surface protection, welding line
• Belt Sander Polished
• Material: Stainless steel 304, Brushed outer shell
• With valves and accessories

(xxiii) Alkali Liquor Tank

• Effective volume:50L
• Inner Body Thickness:2mm
• Electric heating,power:2kw with anti dry function
• Inner & Outer Plate Surface protection, welding line
• Belt Sander Polished
• Material: Stainless steel 304,Brushed outer shell
• With valves and accessories

(xxiv) Washing Pump

• Flux 3m3/h,power:1.1KW,lift:18M
• Centrifugal pump, motor brand: ABB or WEG
• Temperature resistance:120°C
• Clamp connection
• Material:SanitarySUS304
• Brand: LYSF

(xxv) CIP Controller

• Function: CIP control
• Material: Painted steel
• Function:
• Temperature display and control for Alkali tank
• Pump on/off control

Control System

(xxvi) Main Control Cabinet

• Enclosure Material: Stainless Steel
• Cooling method: Cooling fan inside
• Controller Type: Automatic temperature control by PLC controller
• PLC brand & model: Siemens S7-1200
• Touch screen brand: Siemens
• Power Supply: 380V/50hz/3-phase+Neutral+Earth
• General functions: Emergency Stop
• Brewhouse Functions:
  • Lauter Rake VFD + controller + breaker + motor +protection + On/Off
  • Wort Transfer Pumps VFD + controller + breaker + motor + protection + On/Off
  • Hot Water Transfer Pumps (On/Off/Auto)
  • MLT temperature control and heating by HMI
  • KWT temperature control and heating by HMI
  • HLT temperature control and heating by HMI
  • Step-mashing for mash tun
• Fermentation Functions:
  • Display and control of the fermentation (6pcs)temperatures in cooling mode (On/Off/Auto)
  • Display and control of the BBTs’(2pcs) temperatures in cooling mode (On/Off/Auto)
  • Display of the Glycol Water Tank temperature
  • Control Glycol Water Pump (On/Off/Auto)
  • Remote monitor and control for FVs/GLT/BBTs
