Products >> 300L Nano Brewhouse

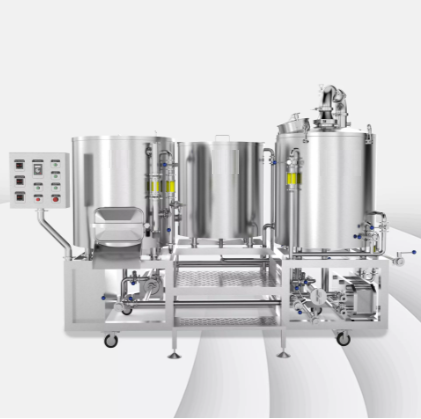

300L Nano Brewhouse
Introducing the 300L Nano 3-Vessel Brewhouse: Crafted for Artisan Brewing. This system features dedicated vessels for mashing, boiling, and fermenting, providing complete control over the brewing process. Ideal for homebrewing, entry-level Micro Breweries, Pilot Brewing Systems, or full-scale Nano-Brewery production.
Product Specification - 300L Nano 3-Vessel Brewhouse
(i) Mash / Lauter Tank
- Effective Capacity: 300L;
- Dimension:φ800
- Insulation: Rock wool
- Insulation thickness: 50mm
- Interior SUS 304 thickness: 3mm
- Exterior SUS 304 thickness: 2mm
- Tank leakage test by full water for 72 hours
- Tank Working Pressure: Atmosphere
- Grain rake with controlled motor on top, motor brand: ABB
- Size grain outlet *Dome top and conical bottom
- Top SS Manhole
- Two CIP 360°rotary spray balls
- Easy clean and sparge ring
- Organic glass Liquor level meter with measurement
- False bottom: Milling sieve plate detachable, thickness 4mm, Plate gap 0.7mm
- Material: SUS304, outer shell. Interior Finish: Overall polishing ≤0.6μm, Completely acid washing and passivation without dead corner. Form a protection film inside tank.
- 100% TIG welding with pure argon gas shield
- 4pcs completely SUS304 heavy duty legs with leveling pad.
(ii) Boil Kettle / Whirlpool Tank
- Effective Capacity: 300L;
- Dimension:φ800
- Insulation: Rock wool
- Insulation thickness: 50mm
- Interior SUS 304 thickness: 3mm
- Exterior SUS 304 thickness: 2mm
- Indoor exhaust devices
- Heating method: electrical heating,power:15kW
- Dome top and conical bottom
- Tank leakage test by full water for 72 hours
- Tank Working Pressure: Atmosphere
- Top SS Manhole
- Centre and middle output
- Organic glass Liquor level meter with measurement
- With 360°Spraying ball from top inside
- Temperature sensor PT100
- Material: SUS304 outer shell. Interior Finish: Overall polishing ≤0.6μm, Completely acid washing and passivation without dead corner. Form a protection film inside tank.
- 100% TIG welding with pure argon gas shield
- 4pcs completely SUS304 heavy duty legs with leveling pad
- With all matched valves
(iii) Wort Pump
- Flux 3m3/h,lift:18M, power:1.1KW
- Centrifugal pump, Danfoss VFD, motor brand: ABB or WEG
- Temperature resistance:120°C
- Clamp connection
- Material:SanitarySUS304
(iv) Hot Water Tank
- Effective volume:300L,total capacity:340L
- Dimension:φ800*1527mm
- Insulation: Rock wool
- Insulation thickness: 60mm
- Interior SUS 304 thickness: 3mm;
Exterior SUS 304 thickness: 2mm - Heating: electrical heating, power:12kW
- Tank Working Pressure: Atmosphere
- 360°coverage CIP spraying ball
- Stainless steel pipeline connect with brewhouse
- Conical top and conical bottom
- Stainless mounted manhole
- PU liquor level meter
- Temperature sensor PT100
- Material: SUS304 outer shell. Interior Finish: Overall polishing ≤0.6μm,Completely acid washing and passivation without dead corner. Form a protection film inside tank.
- 100% TIG welding with pure argon gas shield
- 4pcs completely SUS304 heavy duty legs with leveling pad
- With all matched valves and accessories.
(v) HLT Pump
- Flux 3m3/h,lift:18M, power:1.1KW
- Centrifugal pump, motor brand: ABB or WEG
- Temperature resistance:120°C
- Clamp connection
- Material:SanitarySUS304
(vi) Pipeline of Mash Combination
- Sanitary valves and piping
- Clamp connecting
- Material: Stainless steel 304
- Complete valves, fittings and all parts
- Every weld to a smooth sanitary finish
- Butterfly valves, Pipeline sight glass, Measurement tube, Hydrometer, etc.
(vii) Wort Aeration System
- Function: Inline O2 blending with wort
- Full stainless steel pipe
- Aeration port
- Sight glass with metal cover for wort observation
- Tri-clamps and fittings
(viii) Turbine Flow Meter
- Turbine flow meter
- 24V
- Medium temperature:-20~+120°C
- Ambient temperature:-20~+65°C
- Flow range:1.5~15m3/h
- For brew water and sparging
(ix) Plate Heat Exchanger
- Effective cooling area:3m2
- Type: two stage
- Wort inlet/outlet
- City water inlet/outlet
- Glycol water inlet/outlet
- Material: Stainless steel 304
- Design/test pressure:10bar/13bar
(x) Hop Filter Tank
- Function: hops filter before cooling
- Working capacity:2L
- Type: pressured seal
- Material: Stainless steel 304
- With pressure gauge and port
- Wort inlet/outlet
- Filter Precision:50mesh
Product Overview
300L Nano Brewery Equipment is specially customised for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.
Smart
Mini scale industrial brewing equipment, with all the scaled down parts&fittings, you will full in love with this optimised Brew center.
Turnkey Solution
Installed and wiring ready on a fully welded frame platform, nothing can be easier for your pilot brewing jobs
Cost-effective
The 300L Brewhouse saves space and your installation time. It has four wheels and is very convenient to move. All Tanks are on one frame, which is very compact and practical.
Mash+Lauter Tank
- Effective volume=300L, max volume=375L
- Atmospheric top lid
- Tri-clamp Spary Ring Tube
- Wort backflow pipeline equip with Sight glass
- Removable false bottom
- Grain out door
- Temperature Probe & PT-100
Kettle+Whirlpool Tank
- Effective volume=300L, max volume=375L
- Atmospheric pressure lid
- 6kw electric element
- Tangent whirlpool inlet
- Temperature Probe&PT-100
Hot Water Tank
- Effective volume=300L, max volume=375L
- Atmospheric manual open top lid
- 12kw electric element
- With 1T/H Hot water pump
- Temperature Probe&PT-100
with level mark inside of tank
PID Control Cabinet
- SUS 304 Material cabinet
- Temperature indicator & heating elements on/off control of mash/lauter tun, kettle/whirlpool tank, hot water tank
- Wort Pump VFD Speed control
- Hot water pump on/off control
- With high quality electric components, Schneider brand. CE, ISO Certificated
Knocking Out Fittings
- High precision hops filter, equipped in pipelinebefore PHE
- 3㎡ single stage plate heat exchanger
- Temperature Gauge after PHE
- Tap water outlet from the PHE to be able backflow into Hot water tank
- Oxygenation device before wort knocking out port
